6664C Low Thermal Quad Scanners, 1000V max
0
PRODUCT FEATURES
- Withstands up to 1000 Vdc to provide fully automated resistance measurements
- Each Channel handles Up to 2 Amps
- Thermoelectric Potentials: <20 nV
- Contact Life: @10,000,000 Cycles
- Front Panel or Remote GPIB Control
- 4 Terminal Switching Matrix, 8 or 16 Channel Inputs, 2 Channel Outputs
- 8 Channel is upgradeable to 16 Channels
- Gold Flashed Tellurium Copper Terminals
- Front Panel Indication of Selected Channels

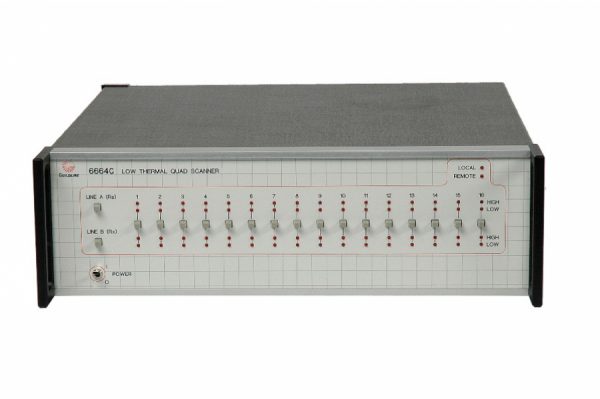

Guildline’s 6664C Low Thermal Quad Scanner is the first commercial scanner capable of operating at 1000V. This has greatly improved the measurement/calibration throughput of standards laboratories, since many high ohm measurements can now be automated.
.
